SDI Blue Banger Hangers – Patented Deck Anchor Inserts

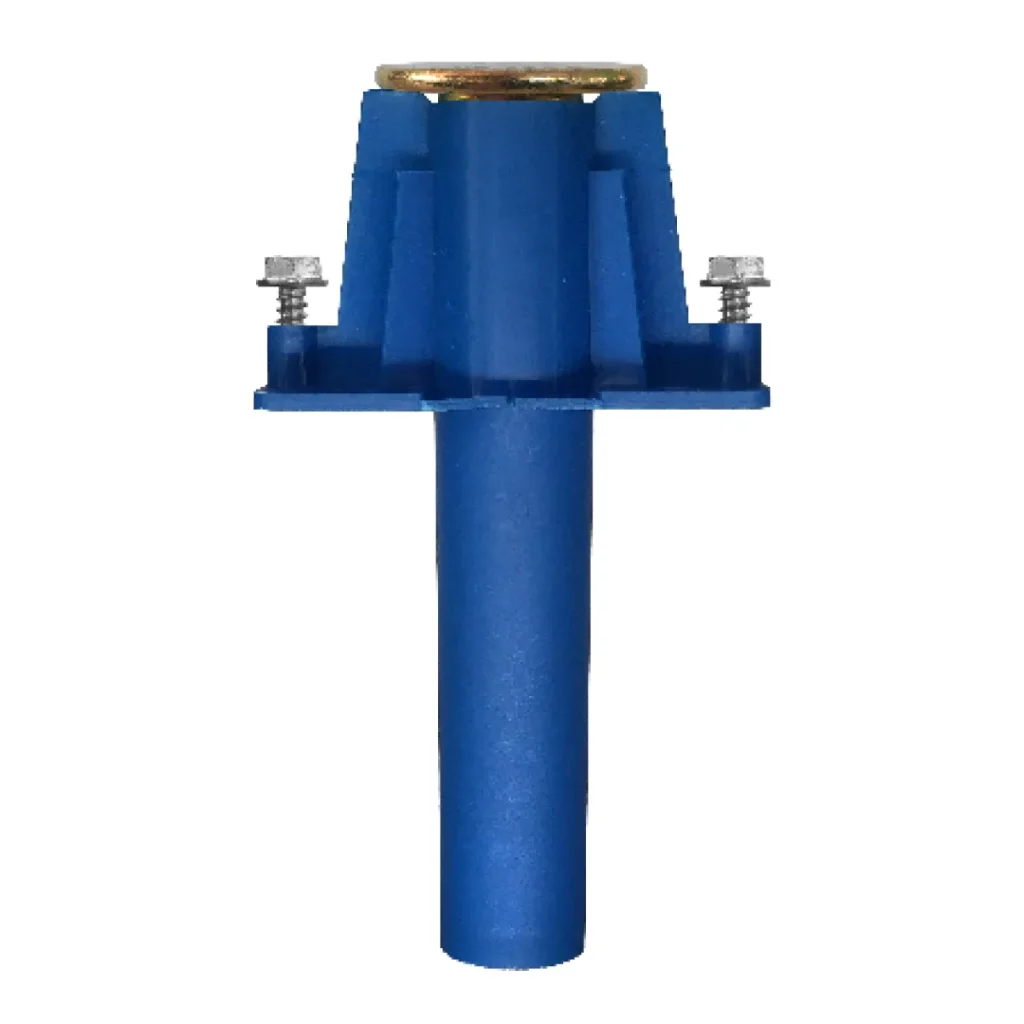

SDI – Steel Deck Insert

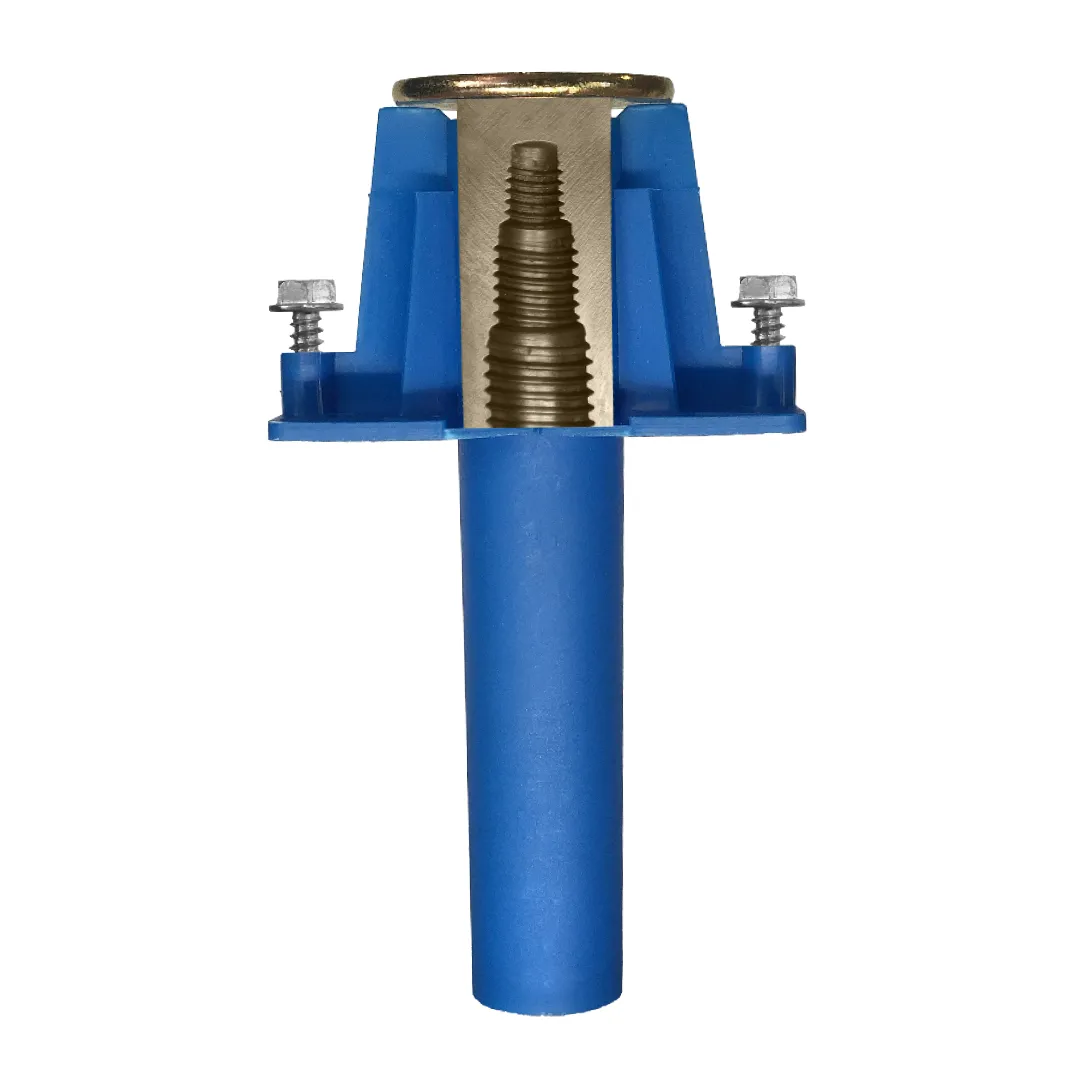

Multi-Threaded Anchor Insert for Pre-Poured Concrete Steel or Metal Decks
The Patented Insert that Changed the Anchor Industry

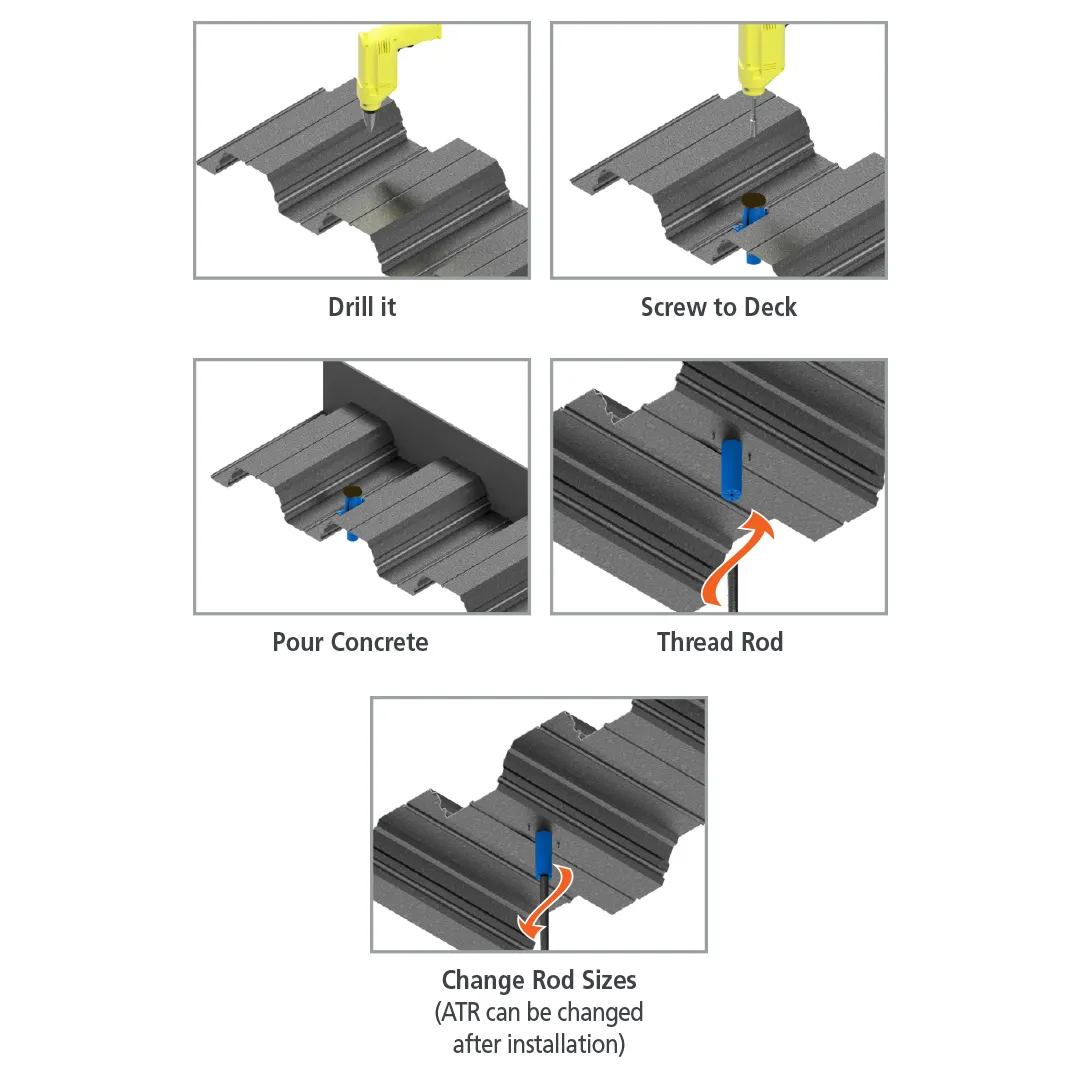

ISAT’s Steel Deck Insert (SDI) was engineered in-house to increase project efficiency for our customers. SDI’s are poured prior to pouring concrete, streamlining installation and reducing material costs.
Backed by industry-leading test approvals for design and application engineering, each insert handles multiple threaded rod diameters and installs in a fraction of the time of post-installed anchors. Our patented Blue Banger Hanger steel deck inserts are the preferred choice of mechanical, electrical, plumbing/piping, and fire sprinkler contractors around the world.
SDI – Steel Deck Insert Features
Streamlined Installation
- Increases Project Efficiency
- Installs in a Fraction of the Time of Post-Installed Anchors

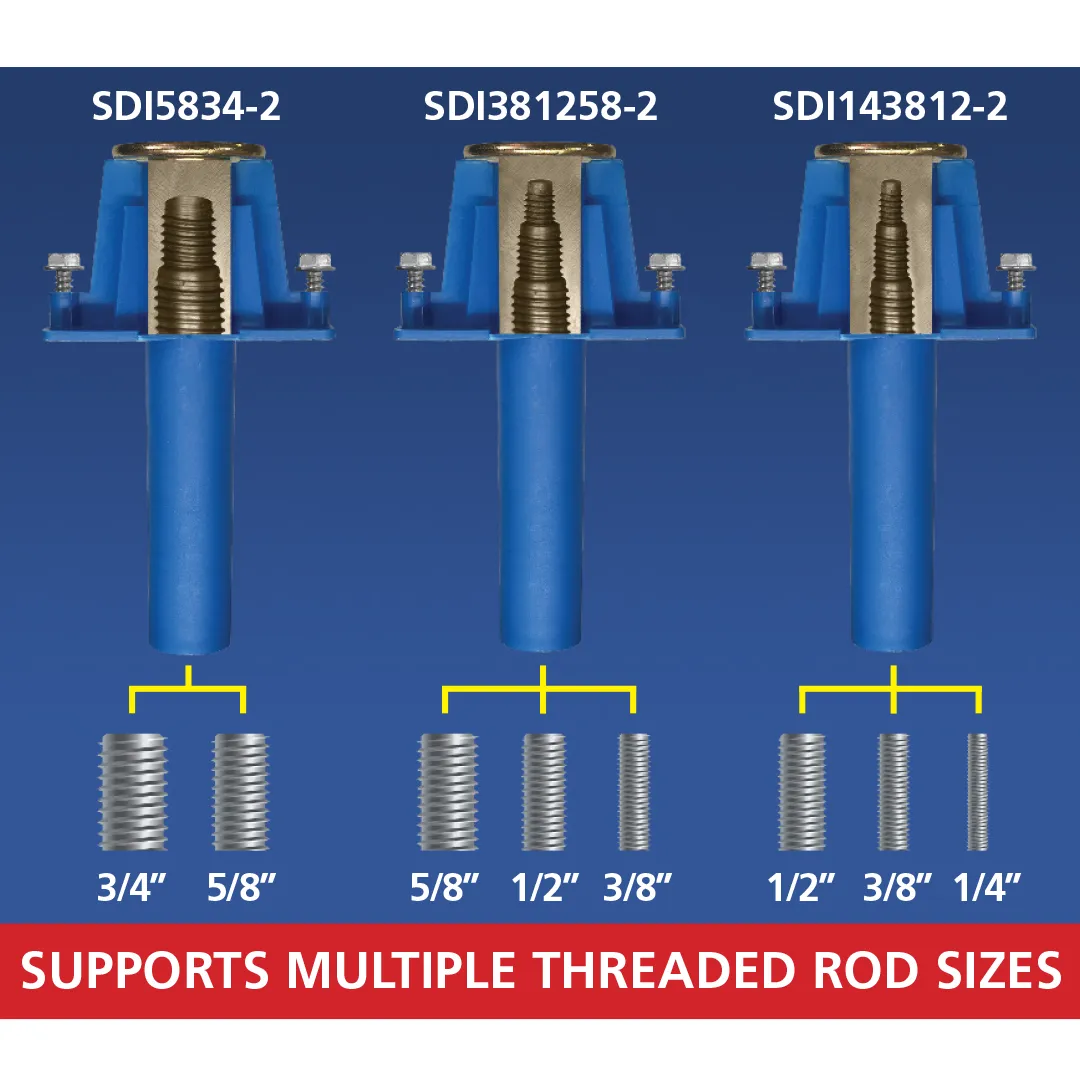

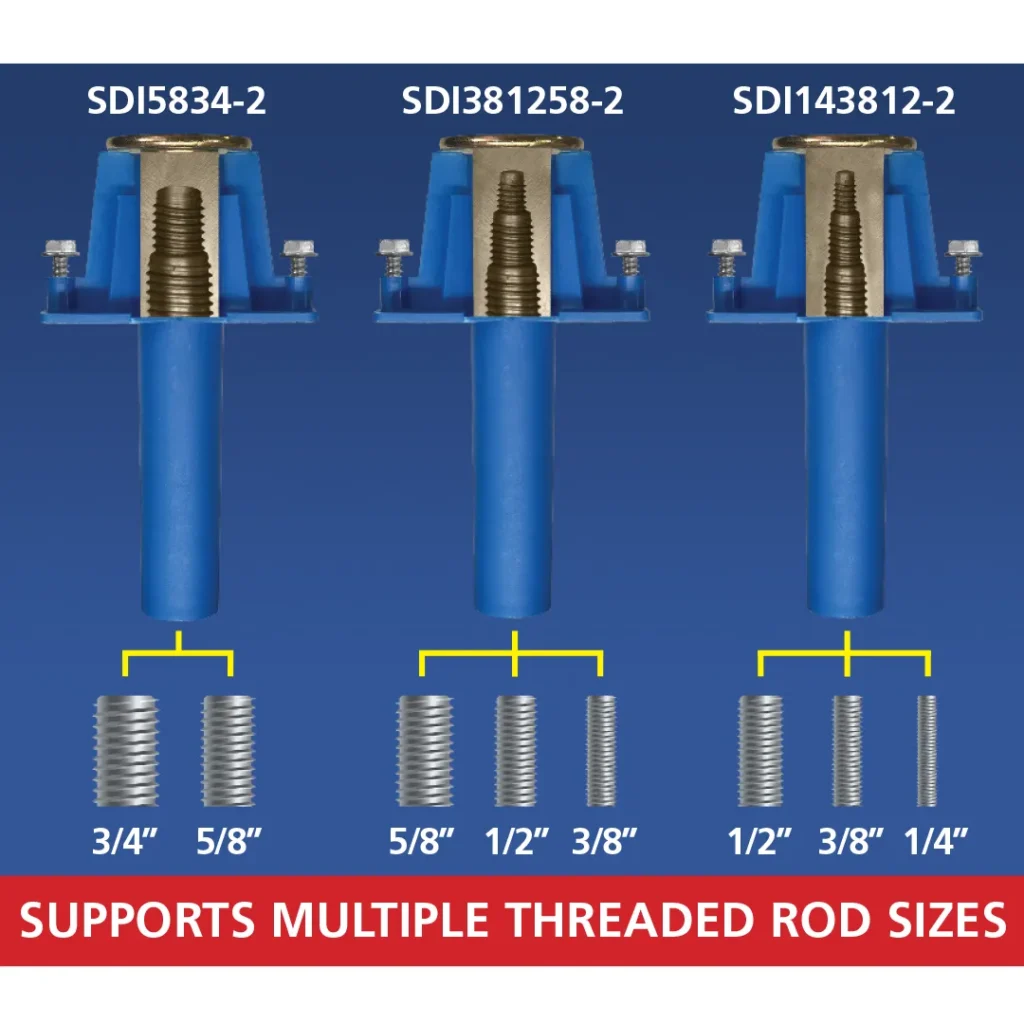

- Each Insert Supports Multiple Rod Sizes and Reduces Inventory
- No Drilling Concrete, No Rod Couplers, No Special Inspection
- Virtually Eliminates Installer Error
- Backed by Industry-Leading Test Approvals

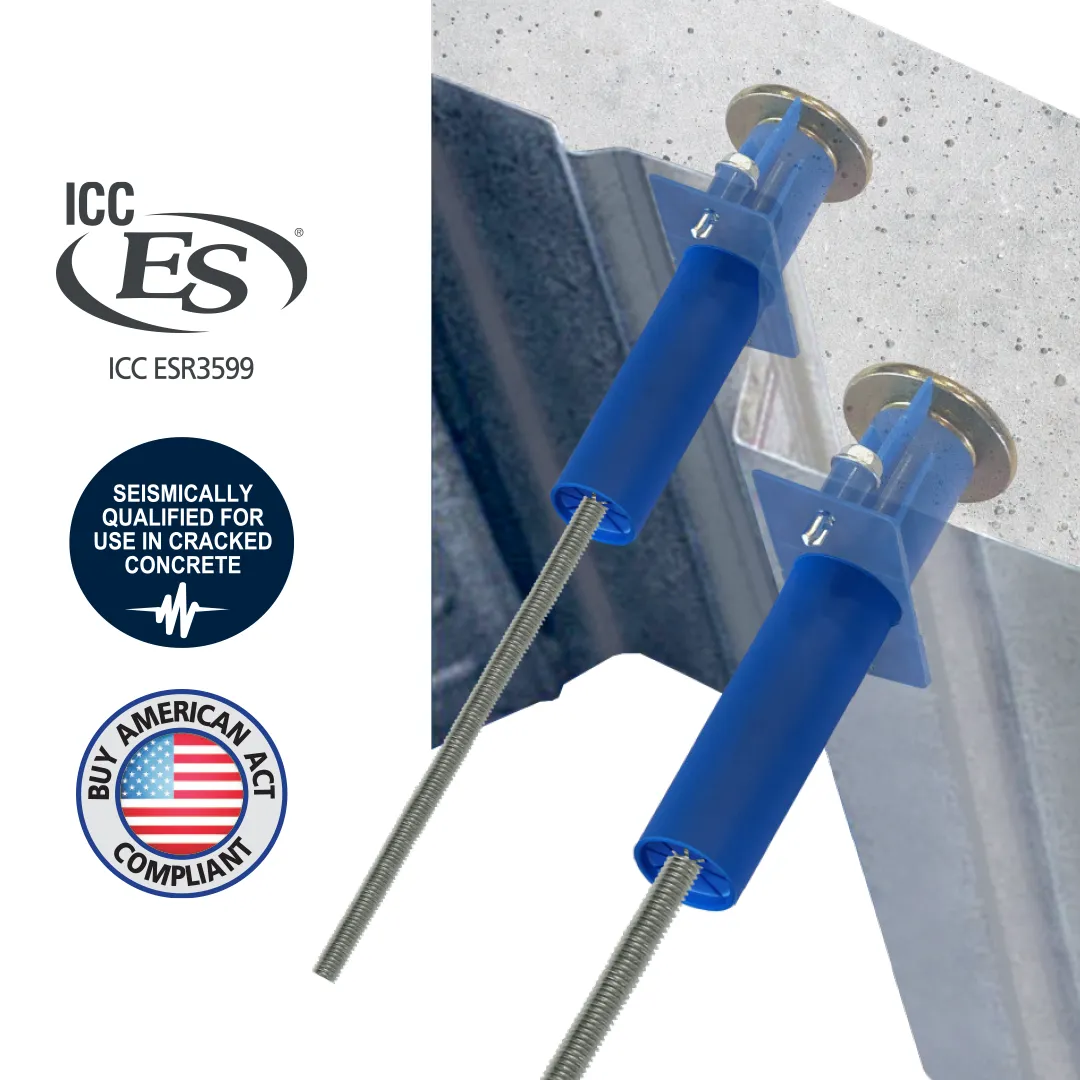

- Seismically Qualified for Use in Cracked Concrete
- US Patents 6,240,697 B1 & 7,093,400 B1
Ready to Order?
For best pricing call 877-523-6060 (8 – 5 PST Mon – Fri), or click to request a quote.
Blue Banger Hanger, steel deck inserts are the insert of choice throughout the construction industry. They’re used extensively on facilities with the most complex and strictly enforced building requirements such as hospitals, biotech, government, educational, airports, and much more.
Add “BAA” to the end of the part number for the Buy American Act compliant insert.
SDI Order Numbers. To Order, Contact Your Sales Rep/Dealer, or Call 877-523-6060
| PART# | DESCRIPTION | HOLE DIA | BOX QTY |
|---|---|---|---|
| SDI143812 | 1/4”, 3/8” and 1/2” Steel Deck Insert | 13/16” – 7/8” | 100 |
| SDI381258 | 3/8”, 1/2” and 5/8” Steel Deck Insert | 1-1/8” – 1-13/16” | 50 |
| SDI5834 | 5/8” and 3/4” Steel Deck Insert | 1-13/16” – 1-1/4” | 50 |
| FSBX | Flute Span Bracket (Fits All SDI Sizes) | 25 | |
| SDI143812EBP | 1/4”, 3/8” and 1/2” SDI with Extended Base Plate | 13/16” – 7/8” | Bulk |
| SDI1381258EBP | 3/8”, 1/2” and 5/8” SDI with Extended Base Plate | 1-1/8” – 1-13/16” | Bulk |
| SDI5834EBP | 5/8” and 3/4” SDI with Extended Base Plate | 1-13/16” – 1-1/4 | Bulk |
BBH Industry Approvals
