Push Rods

PRODUCT CATEGORY: CONCRETE INSERTS
Push Rod Introduction – Patented Deck Anchor Inserts

ISAT Push Rod Hangers Logo

Patented Push Rods – Deck Anchor Inserts

Just Push It! It Doesn’t Get Any Easier Than This.

Engineered from the revolutionary, patented Blue Banger Hanger

The insert that changed the anchoring industry is now even better. Derived from ISAT’s original patented Blue Banger Hanger, the Push Rod overhead attachment system features an innovative patented auto-lock chamber that locks in threaded rod. Installers will quickly understand the benefits by simply pushing threaded rod into the Push Rods auto-lock insert instead of manually turning the threading. Additionally, the threaded rods include patented engagement markings that confirm full engagement eliminating second-guessing and installer error. Like its cousin the Blue Banger Hanger, Push Rod Hangers also reduce inventory because each insert accommodates multiple rod sizes that can be changed after installation.

Which Push Rod can we tell you more about?

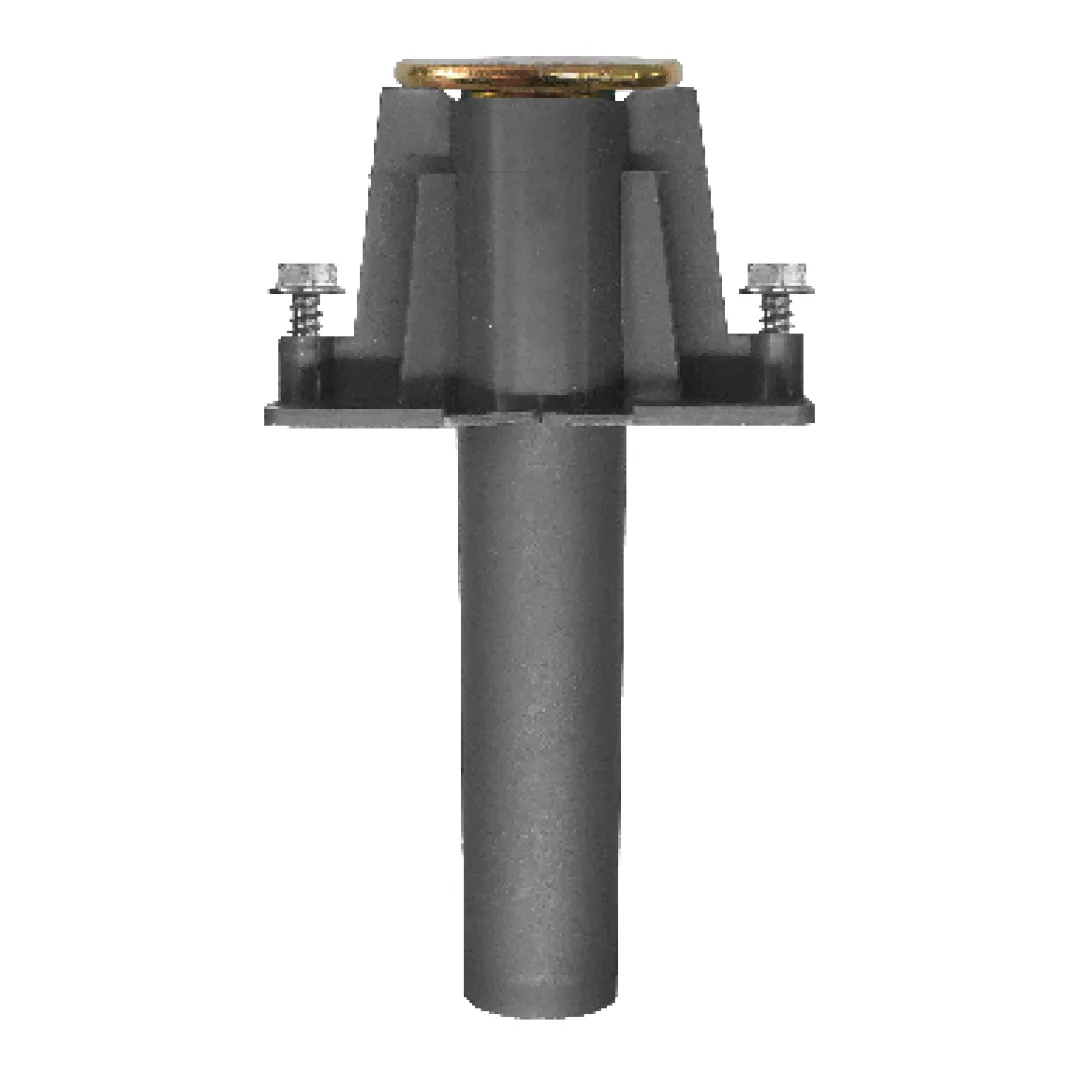

PRSDI
(Push Rod Steel Deck)

For pre-poured concrete steel decks

PRPIP
(Push Rod Poured-in-Place)

For wood-formed concrete decks

For custom, fully fabricated assemblies and trapeze hangers, contact your local rep or our customer service department.

Push Rods Deck Anchors Feature

  • “Just push it” (installs fast and secure)
  • Engineered to save you time and money
  • Patented engagement markings confirm full engagement and eliminate guessing (no installer error)
  • Push to engage, reverse thread to change rod sizes
  • Each insert supports multiple rod sizes
  • Eliminates the need and cost of couplings
  • No drilling concrete, no rod couplers, no special inspection
  • Custom fully fabricated trapeze assemblies available
  • Backed by industry-leading test approvals
  • Seismically qualified for use in cracked concrete
  • US Patents 6,240,697 B1 & 7,093,400,B1

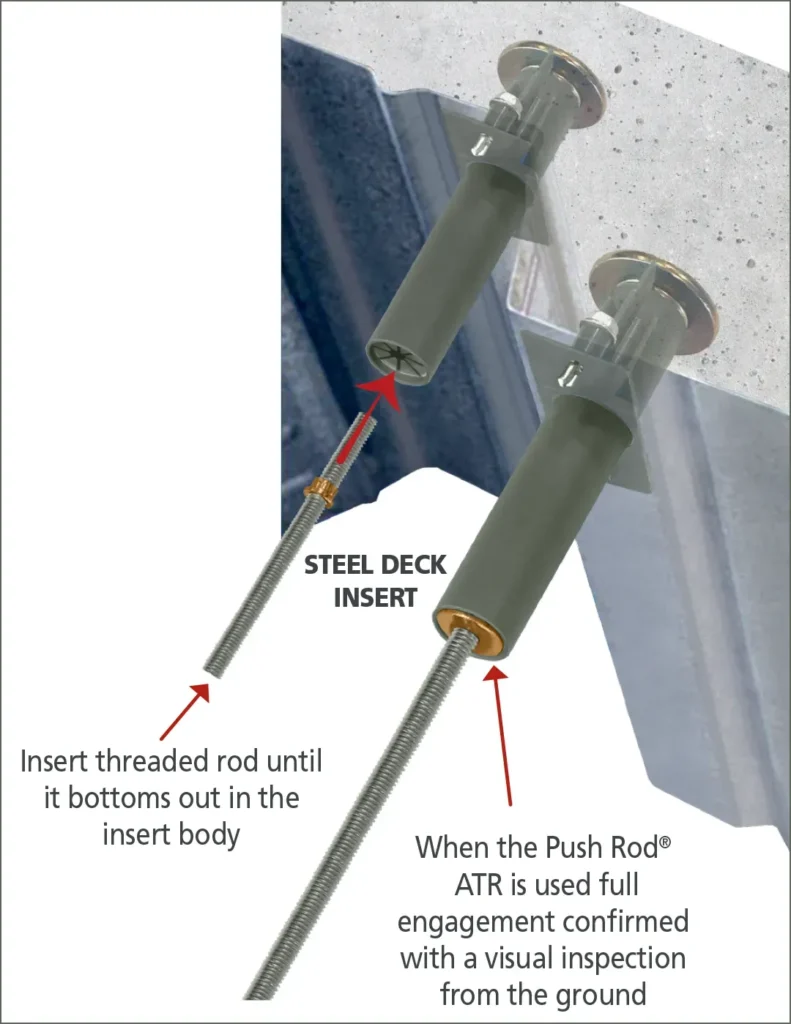

ISAT Push Rods Illustration
