Announcing New Seismic Beam Clamps
New Product Release: Two New Seismic Beam Clamps BC-1 and BC-5
ISAT Releases two New Seismic Beam Clamps

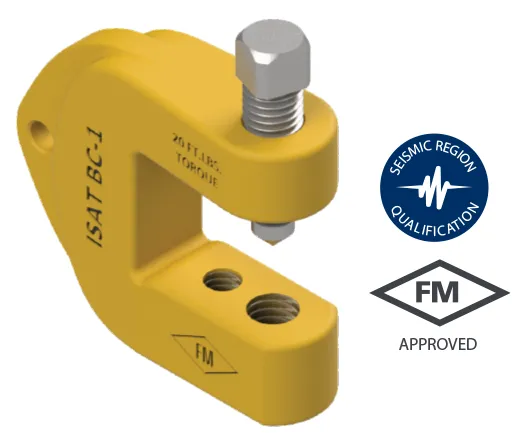

BC-1 Single Sided Beam Clamp for seismic and vertical applications.
BC-1 Seismic Bracing Components: Simply slide the BC-1 Single Sided Beam Clamp onto the beam’s flange (up to 1-1/8” thick) and tighten the case-hardened set screw.
BC-Beam Clamp for Seismic Applications – Tested and qualified to the FM1950 test standard.
BC-1 Vertical Applications – FM Qualified
BC-5 Heavy Duty Seismic Beam Clamp for seismic and vertical applications.
BC-5 Seismic Bracing Components: Simply slide the BC-1 Single Sided Beam Clamp onto the beam’s flange (up to 1-1/8” thick) and tighten the case-hardened set screw.
BC-5 Seismic Applications – Tested and Qualified to the FM1950 Test Standard
Rigid or cable brace arms attached to bottom or top flange of beam.
- 2,635 lb Capacity (load is applied perpendicular to beam)
- 2,430 lb Capacity (load is applied at 45-degree angle to beam)
- 2,225 lb Capacity (load is applied at any angle to beam)
BC-5 Vertical Applications – FM Qualified
- 1,585 lb Vertical Capacity (edge of flange connection)
For additional design and installation flexibility, the BC-5 can be coupled with strut channel in a variety of vertical support configurations.
About ISAT Total Support
ISAT Total Support is a global leader in MEP subcontractor services, recognized for pioneering the integration of engineering expertise, manufacturing capabilities, and wholesale distribution to deliver smarter, safer, and faster construction solutions.
The company specializes in advanced engineering, off-site modularization, and labor-saving systems that help reduce costs, accelerate installation, and enhance jobsite safety. ISAT’s team of professionals excels in seismic design, MEP support design, Virtual Design and Construction (VDC), project management, detailing, and technical support.
Driven by a people-first culture and a collaborative approach, ISAT provides holistic solutions for projects of all sizes. Its mission is to transform how construction is delivered—streamlining design and execution through innovation, technology, and operational excellence.
ISAT is a division of Tomarco
